Space Invaders

Posted: Wed May 12, 2010 6:13 pm
by Georg Weinstabl
Hi,

Does anybody know what this could be good for? :wink:
Whatever, you should then keep an eye on that for future ...

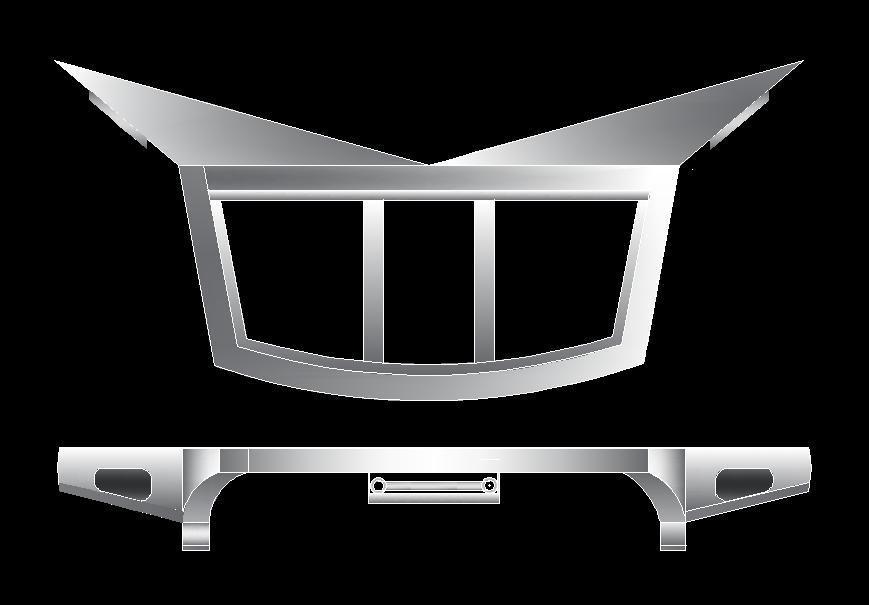

Space invaders
Space invaders

Re: Space Invaders

Posted: Thu May 13, 2010 3:40 pm
by Georg Weinstabl
Here is a sideview

Re: Space Invaders

Posted: Fri May 14, 2010 12:05 pm
by Volga70
Wait, I know, I know - it's a gril! Right? Oh wait, the filename gives it away.... it's a swimming platform! Cool! 8)

As a side-remark: you might think about adding something there to attach a spare outboard engine. Just as a safety measure for those longer trips a bit farther out on sea...

Thanx for sharing again!

Maurits

Re: Space Invaders

Posted: Wed May 19, 2010 6:54 am
by Georg Weinstabl
Someone said that some wood is missing ...

Re: Space Invaders

Posted: Wed Jun 09, 2010 8:15 pm
by Georg Weinstabl
Side view and first tries with a card pattern (Shablon)
Stainless Steelplates used will be 3 mm and 2 mm thick.

Re: Space Invaders

Posted: Wed Jul 07, 2010 9:49 am
by Georg Weinstabl
Step-by-step

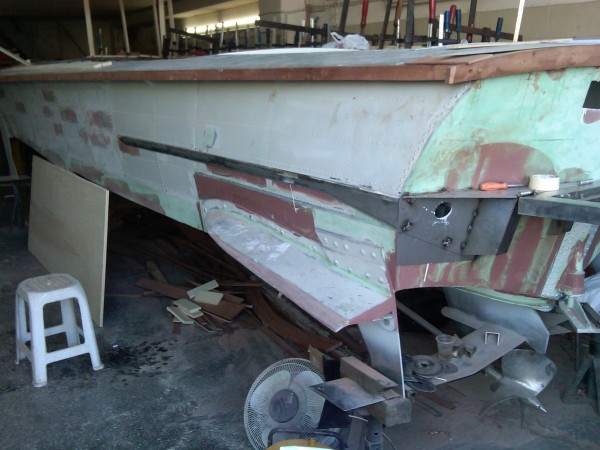

On the arrow we will still add a guard, otherwise we might turn out to be a yacht killer.
On the arrow we will still add a guard, otherwise we might turn out to be a yacht killer.

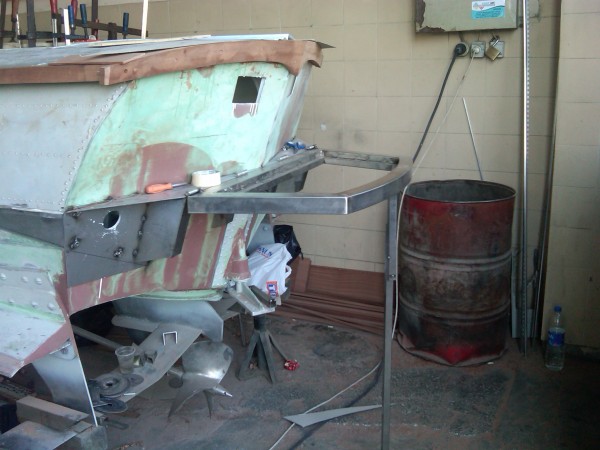

The exhaust is still missing and some plates will be added.
The exhaust is still missing and some plates will be added.

Re: Space Invaders

Posted: Fri Aug 06, 2010 10:08 pm
by Georg Weinstabl
The last fittings and weldings are presently done.

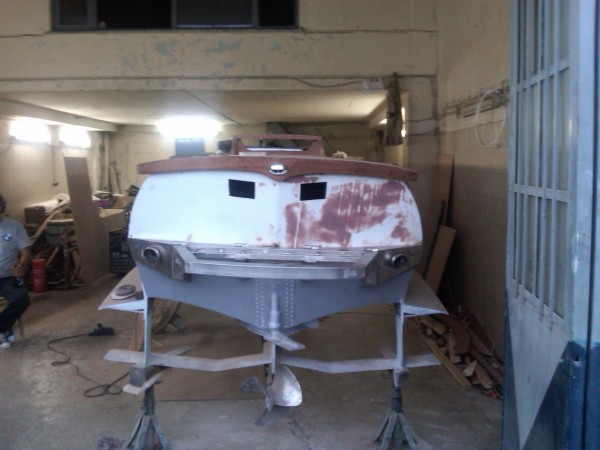

Stern with mounted platform
Stern with mounted platform
More or less the construction will be ready now for polishing soon.

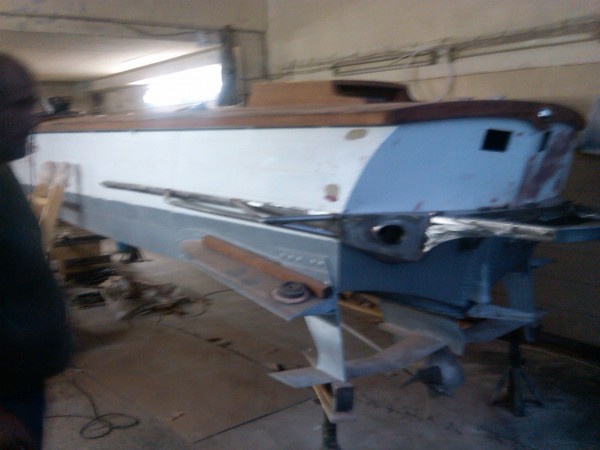

The side guards from elder versions were addopted here. We also mounted a stream or sword-style plate under it that is prolonged towards the middle
The side guards from elder versions were addopted here. We also mounted a stream or sword-style plate under it that is prolonged towards the middle

Re: Space Invaders

Posted: Tue Aug 31, 2010 6:53 am
by Georg Weinstabl
Polished and mounted. I think that the outcome more-or-less keeps the promises of the drawings.

Re: Space Invaders

Posted: Mon Nov 22, 2010 12:19 am
by Georg Weinstabl

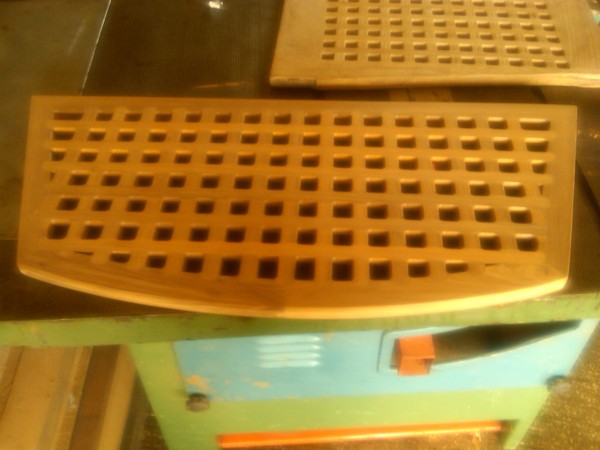

Some wood here ready to be added.
The one at the back does not belong to my boat...
The one at the back does not belong to my boat...

Re: Space Invaders

Posted: Wed Dec 08, 2010 9:12 pm
by Georg Weinstabl
Here we go ...
