Space Invaders

[Georg Weinstabl]

Hi,

Does anybody know what this could be good for?
Whatever, you should then keep an eye on that for future ...

Space invaders


[Georg Weinstabl]

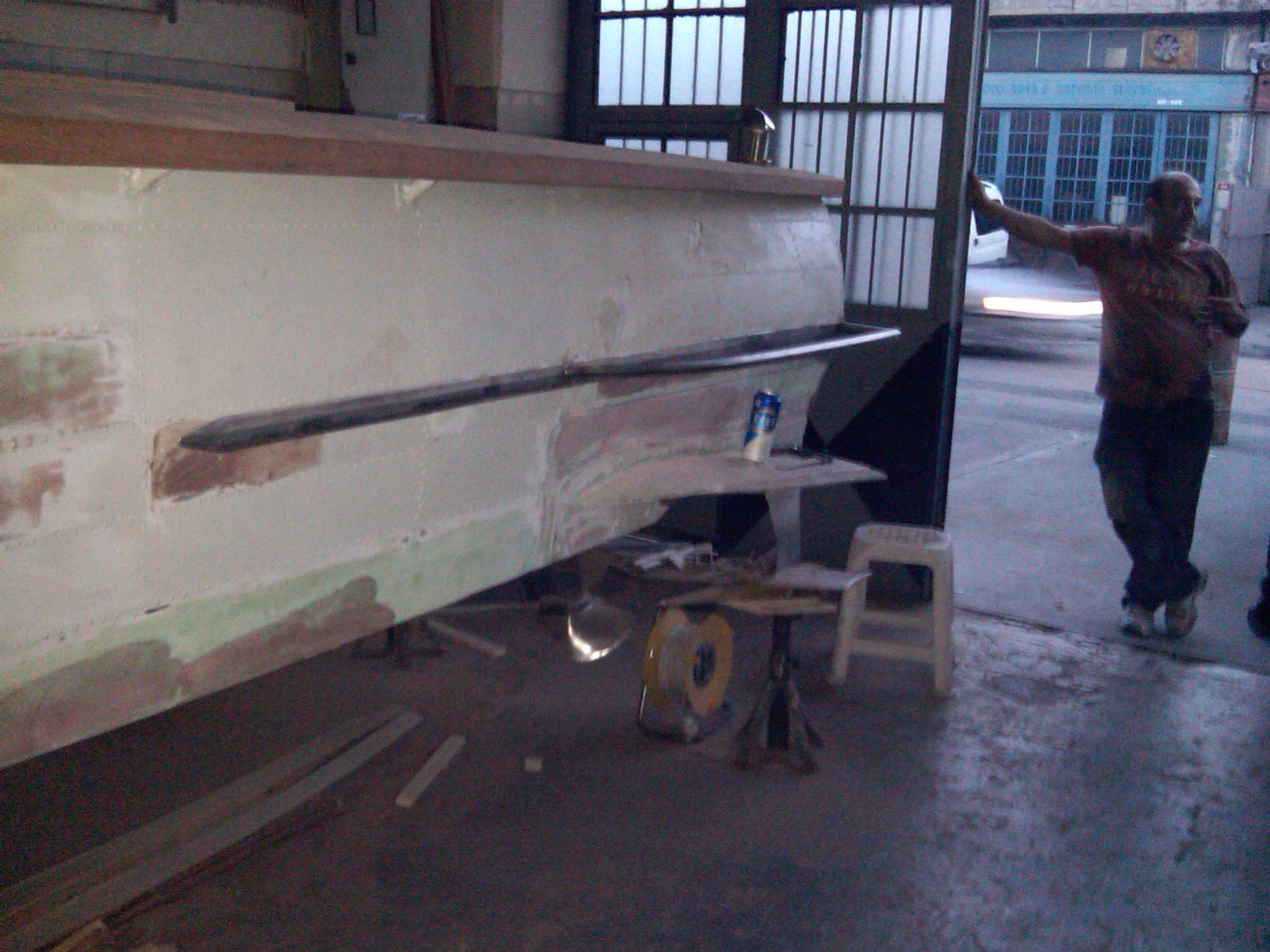

Here is a sideview

[Volga70]

Wait, I know, I know - it's a gril! Right? Oh wait, the filename gives it away.... it's a swimming platform! Cool!

As a side-remark: you might think about adding something there to attach a spare outboard engine. Just as a safety measure for those longer trips a bit farther out on sea...

Thanx for sharing again!

Maurits

[Georg Weinstabl]

Someone said that some wood is missing ...

[Georg Weinstabl]

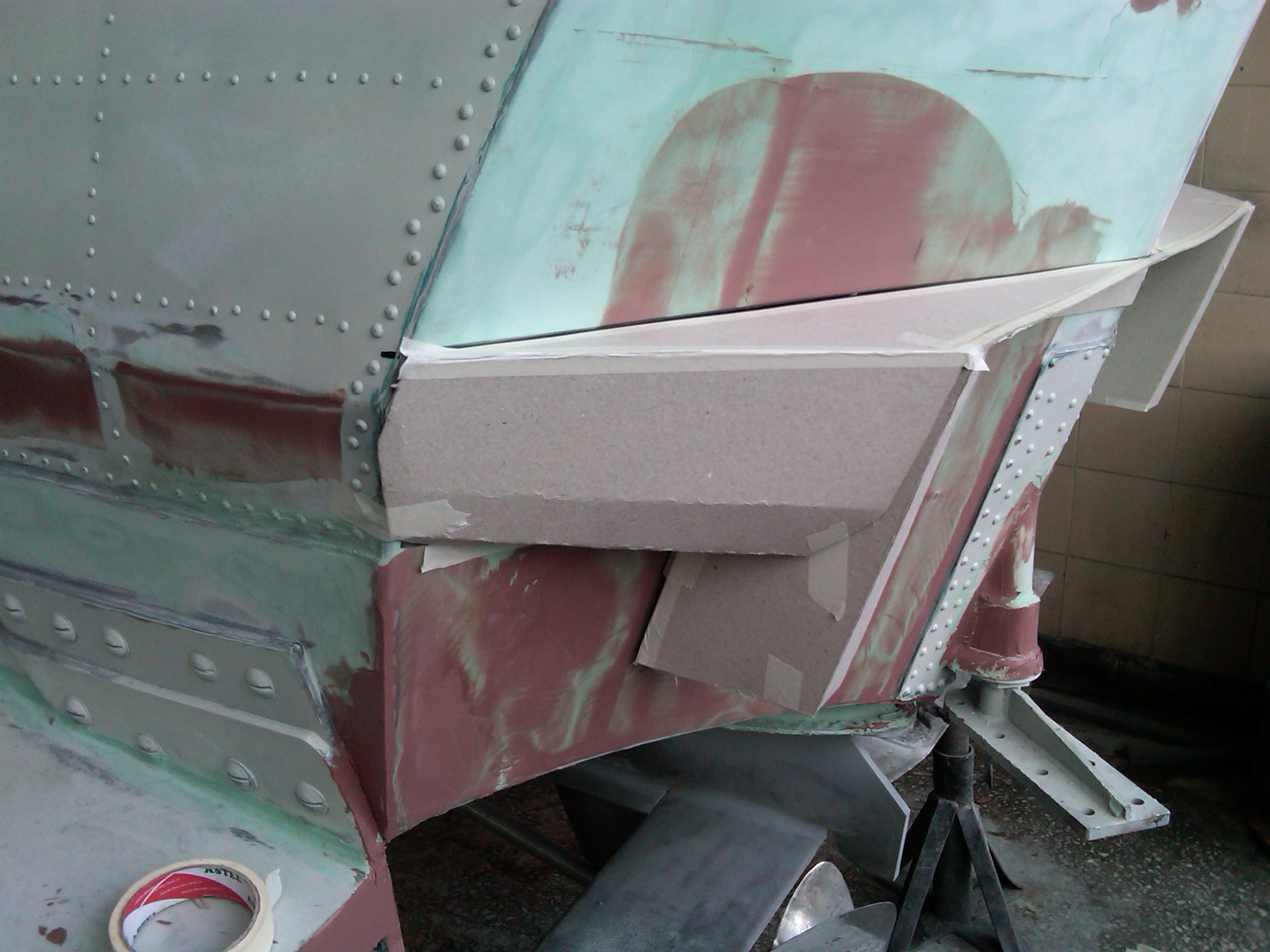

Side view and first tries with a card pattern (Shablon)
Stainless Steelplates used will be 3 mm and 2 mm thick.

[Georg Weinstabl]

Step-by-step

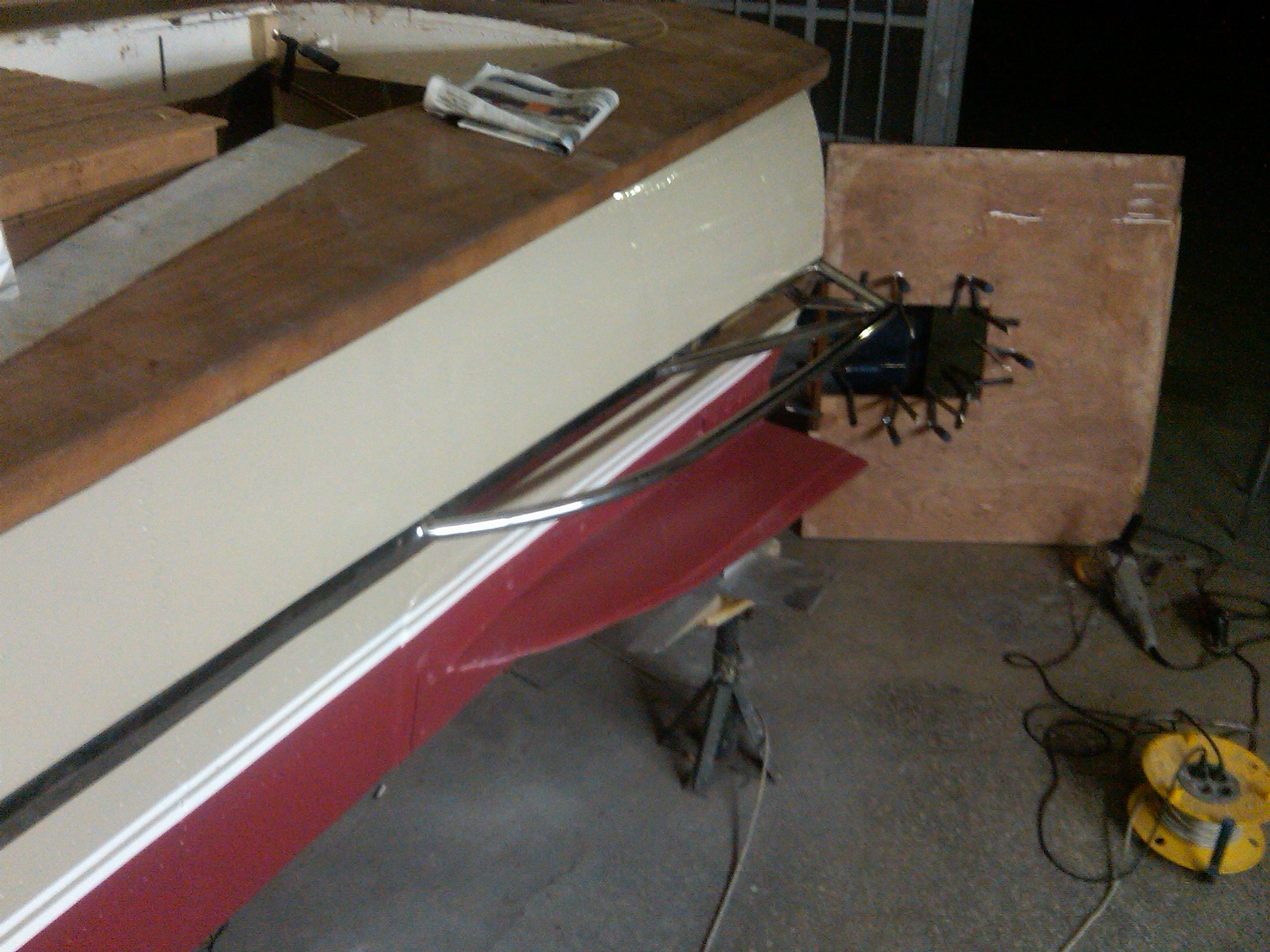

On the arrow we will still add a guard, otherwise we might turn out to be a yacht killer.

The exhaust is still missing and some plates will be added.

[Georg Weinstabl]

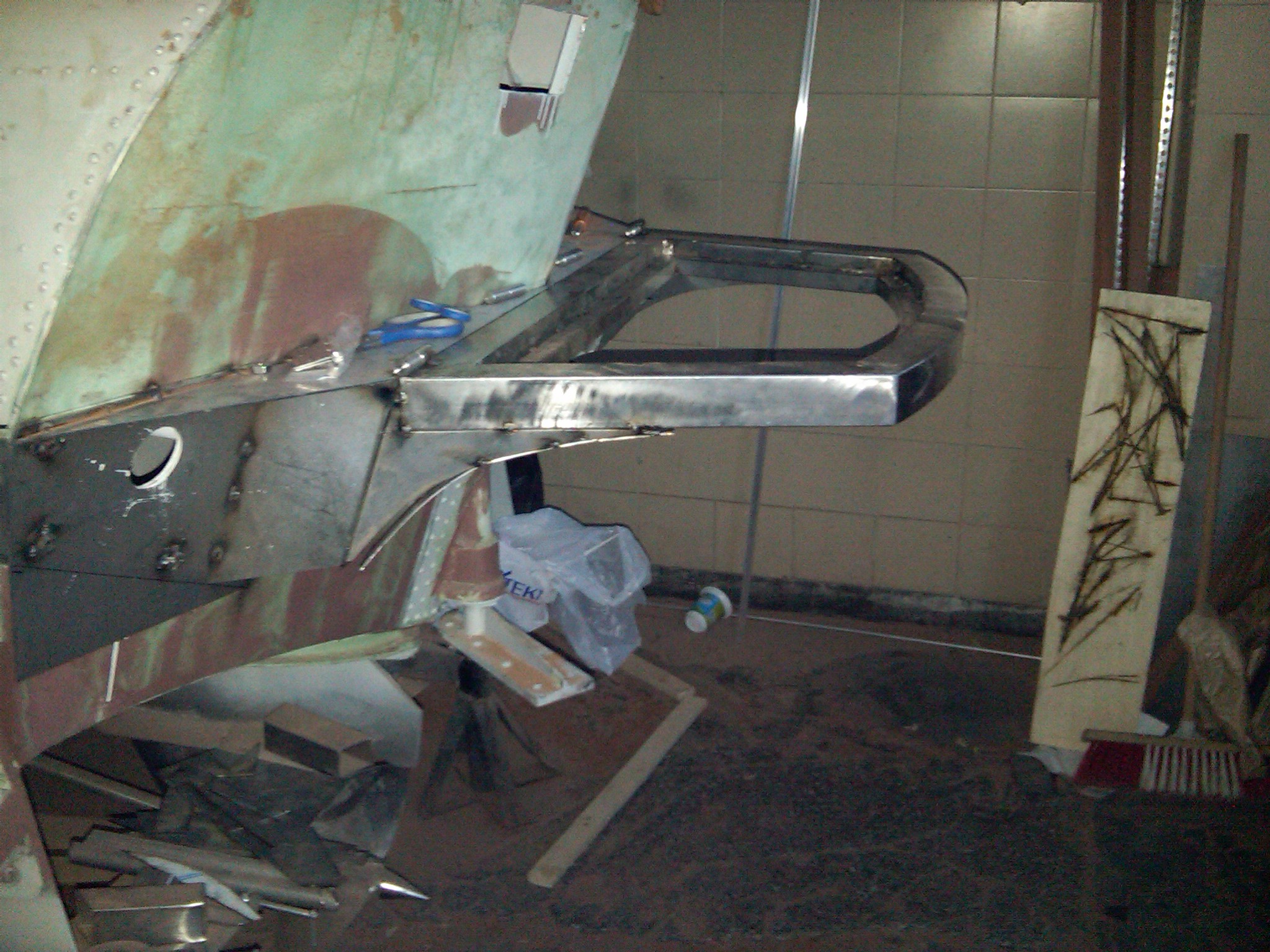

The last fittings and weldings are presently done.

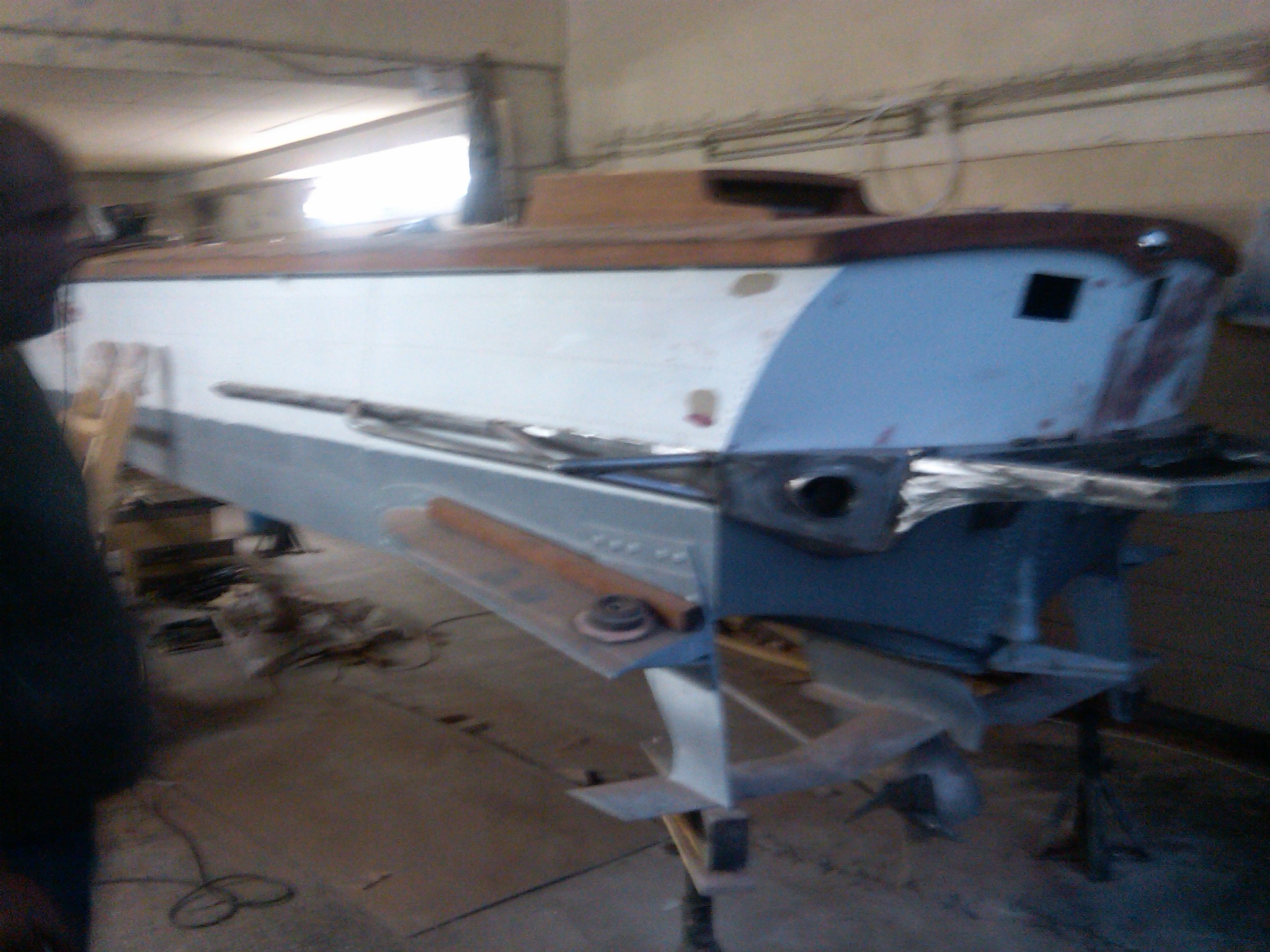

Stern with mounted platform

More or less the construction will be ready now for polishing soon.

The side guards from elder versions were addopted here. We also mounted a stream or sword-style plate under it that is prolonged towards the middle

[Georg Weinstabl]

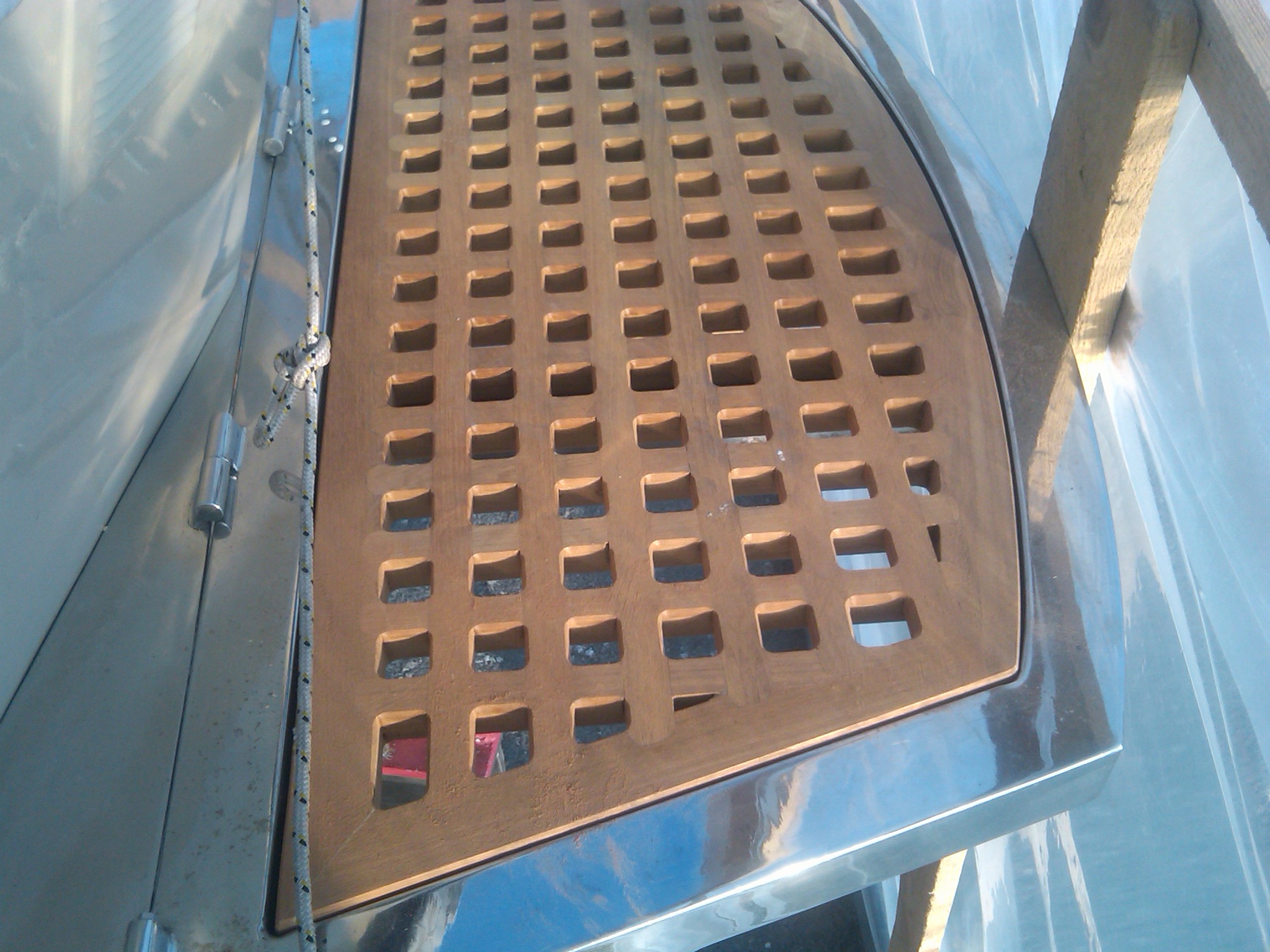

Polished and mounted. I think that the outcome more-or-less keeps the promises of the drawings.

[Georg Weinstabl]

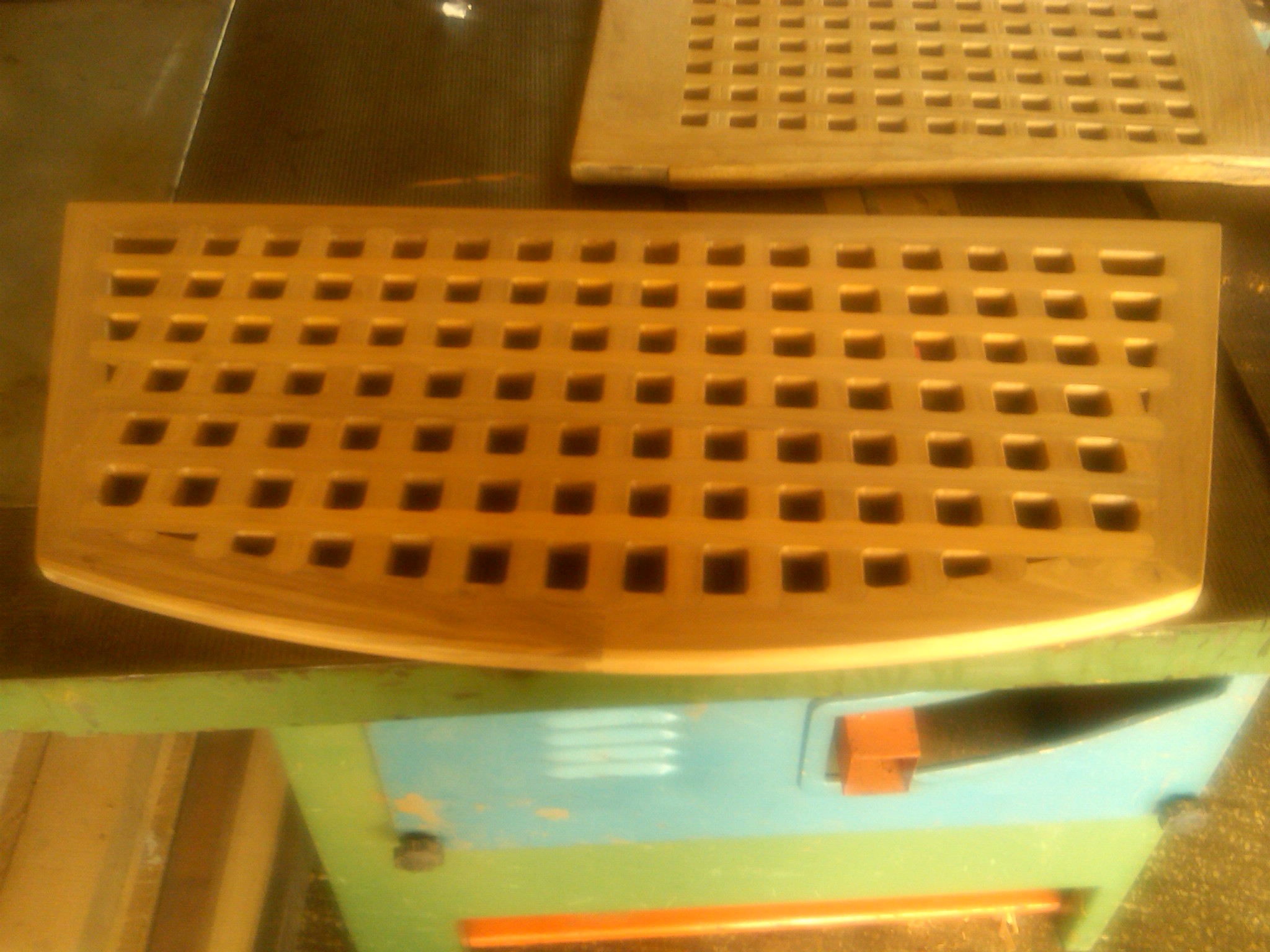

Some wood here ready to be added.

The one at the back does not belong to my boat...

[Georg Weinstabl]

Here we go ...
