Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

Hi,

Most Volgas use classic conventional mechanical control, which means:
- Gas-pedal like in an automobile...
- Gearshifting (or engaging) from the handle (either from left or the middle).

But there is another way as well: Steering wheel operated throttle and shift control.

This version frees you from the Gas-pedal (Who wants to press for hours? An who wants to match
engine speed with gearshifting?)

Now how does it work? Most of us are lovers of the classic 50 - 70ties US cars and for this we should
adore the typical ''American-Way of life AUTOMATIC propulsion control''.

The cars are splashy, the dashboard is spacy and everything is electric'n'easy!
With electronic or electromechanic control we turn our boat into an Automatic-Cruiser with hand propulsion
control and skip the pedals and the shiftgear handle.

The controls not only enable the most unprofessionals to control 'n' gear, but also eliminate the presence of
shifters and gas-pedals and grant you spacesaving steering wheel control like on a 1960 Chevy.
Steering, throttle & shift control on one single console only
Steering, throttle & shift control on one single console only
Attachments

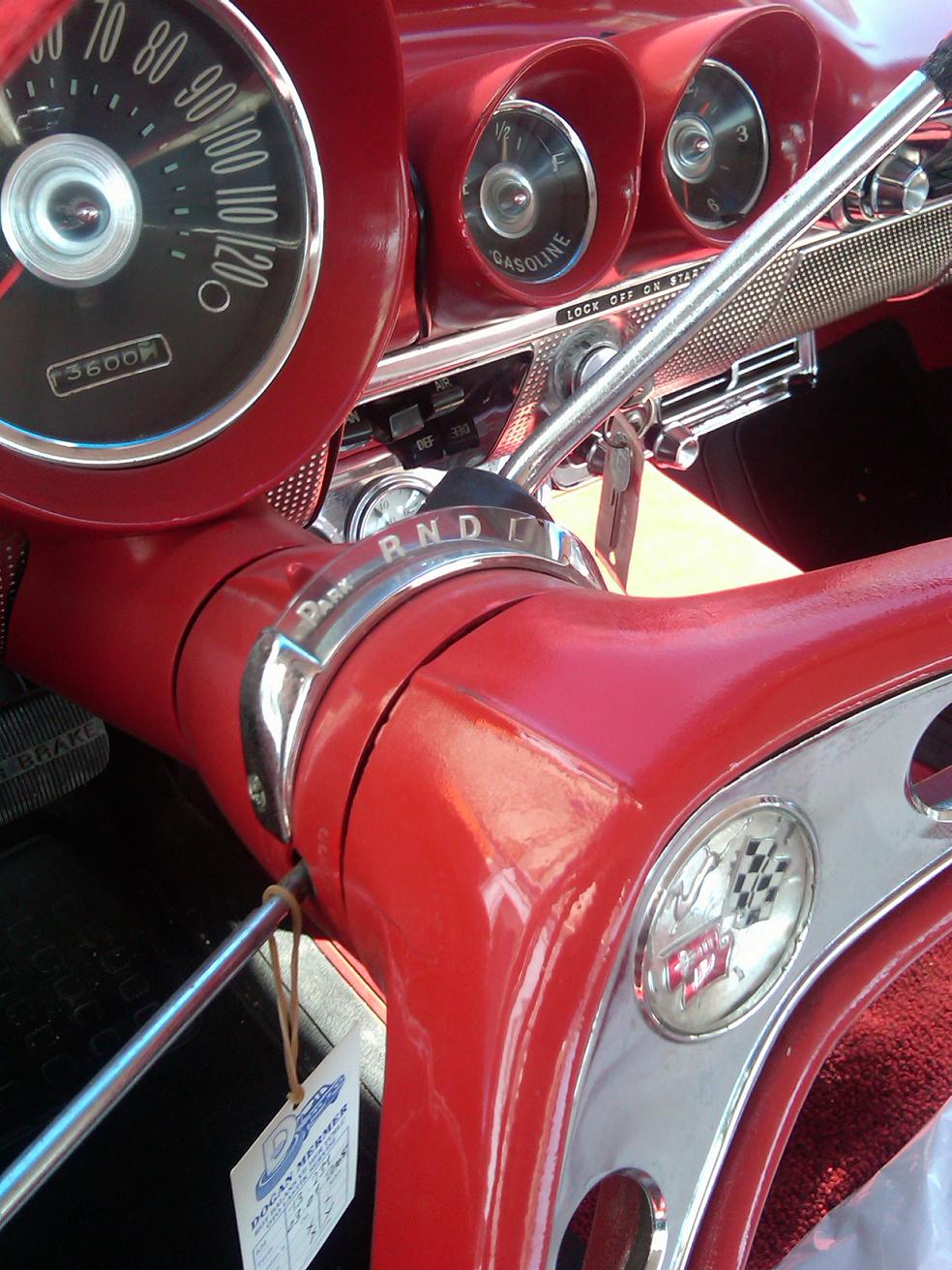

This is, what it looked like on a 1960 Chevy!
This is, what it looked like on a 1960 Chevy!
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

Hi,

Here are some updates on the last version of the steering wheel. It became somewhat more baroque...
Leather lower part, plexiglass horn doom with Volga logo type flashy CCCP.
Attachments

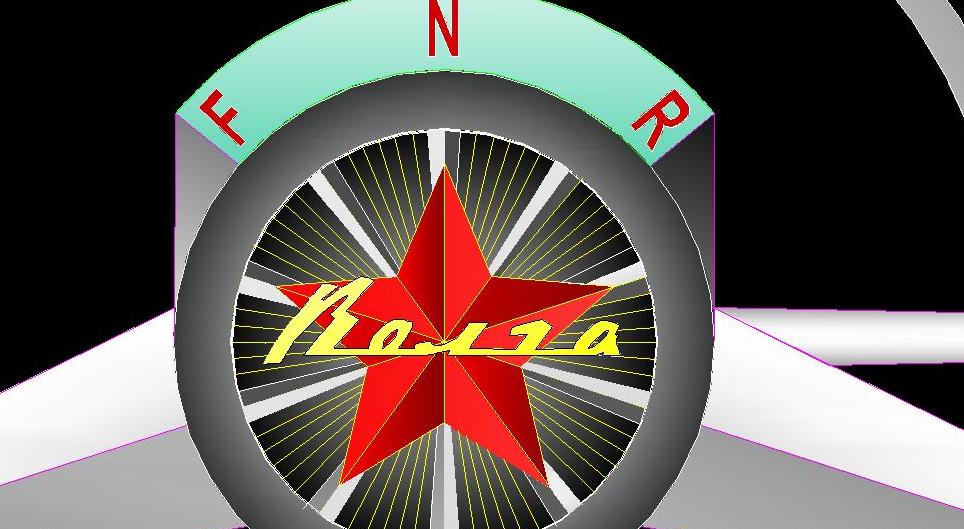

Mind the logo! It took me some time to make it. Clean copies are available in AutoCad!
Mind the logo! It took me some time to make it. Clean copies are available in AutoCad!
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

Close-Up on Horn badge
Attachments
PlexiGlass horn Badge
PlexiGlass horn Badge
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

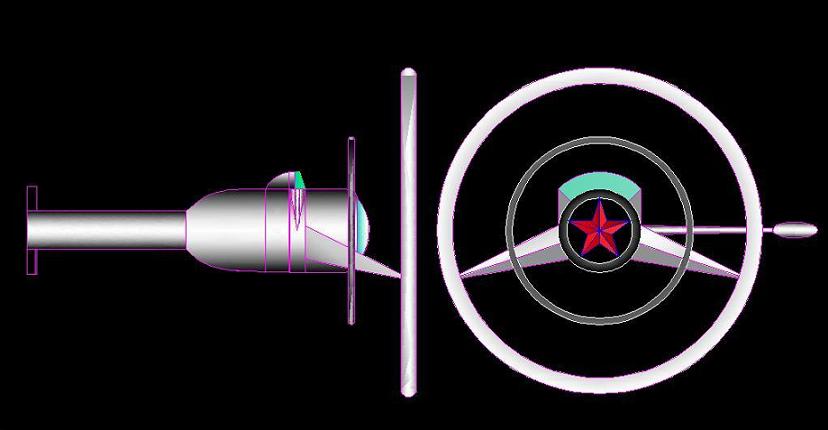

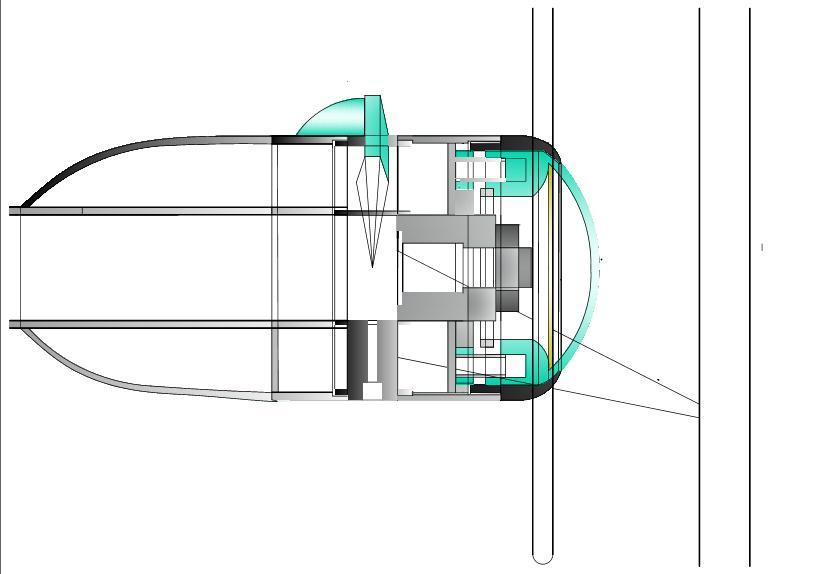

The sectional drawing was something I forgot to add here... Here we go...
We are still struggling on this ...
We are still struggling on this ...
Sectional drawing of steering wheel.JPG (35.68 KiB) Viewed 56016 times

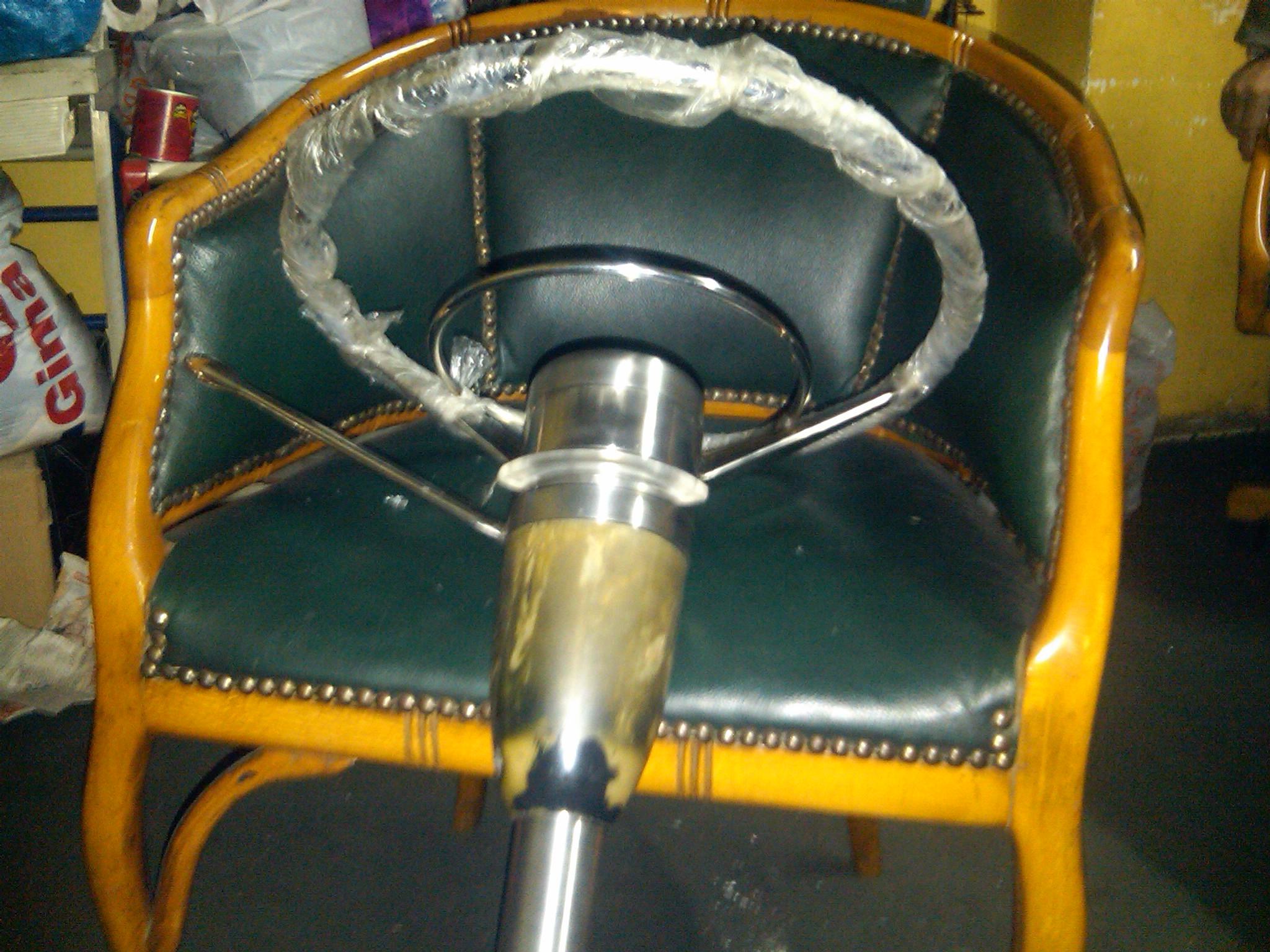

The machined steering wheel, rest is still waiting for finishing.
The machined steering wheel, rest is still waiting for finishing.
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

Some more photos for updating the progress ...

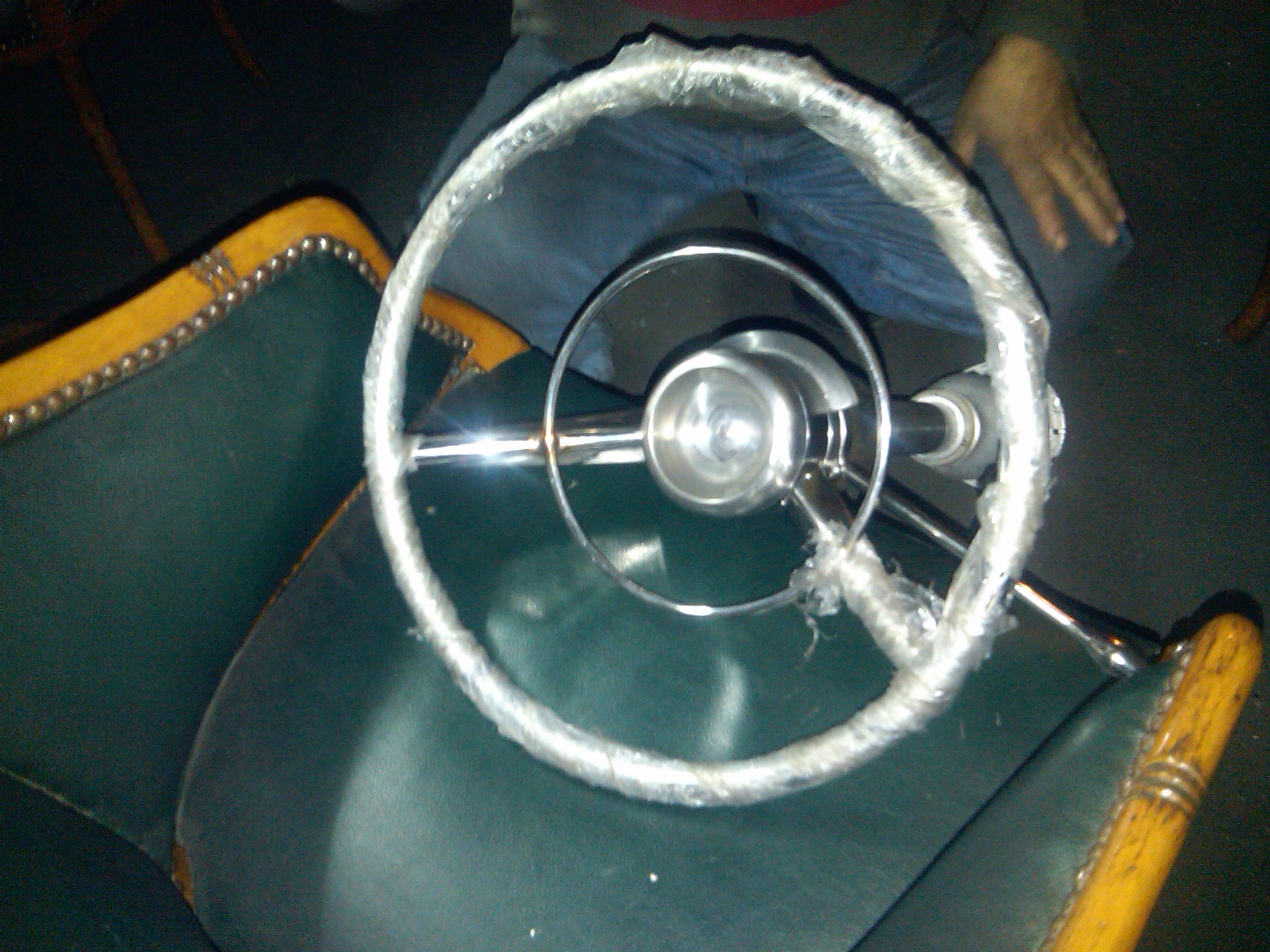

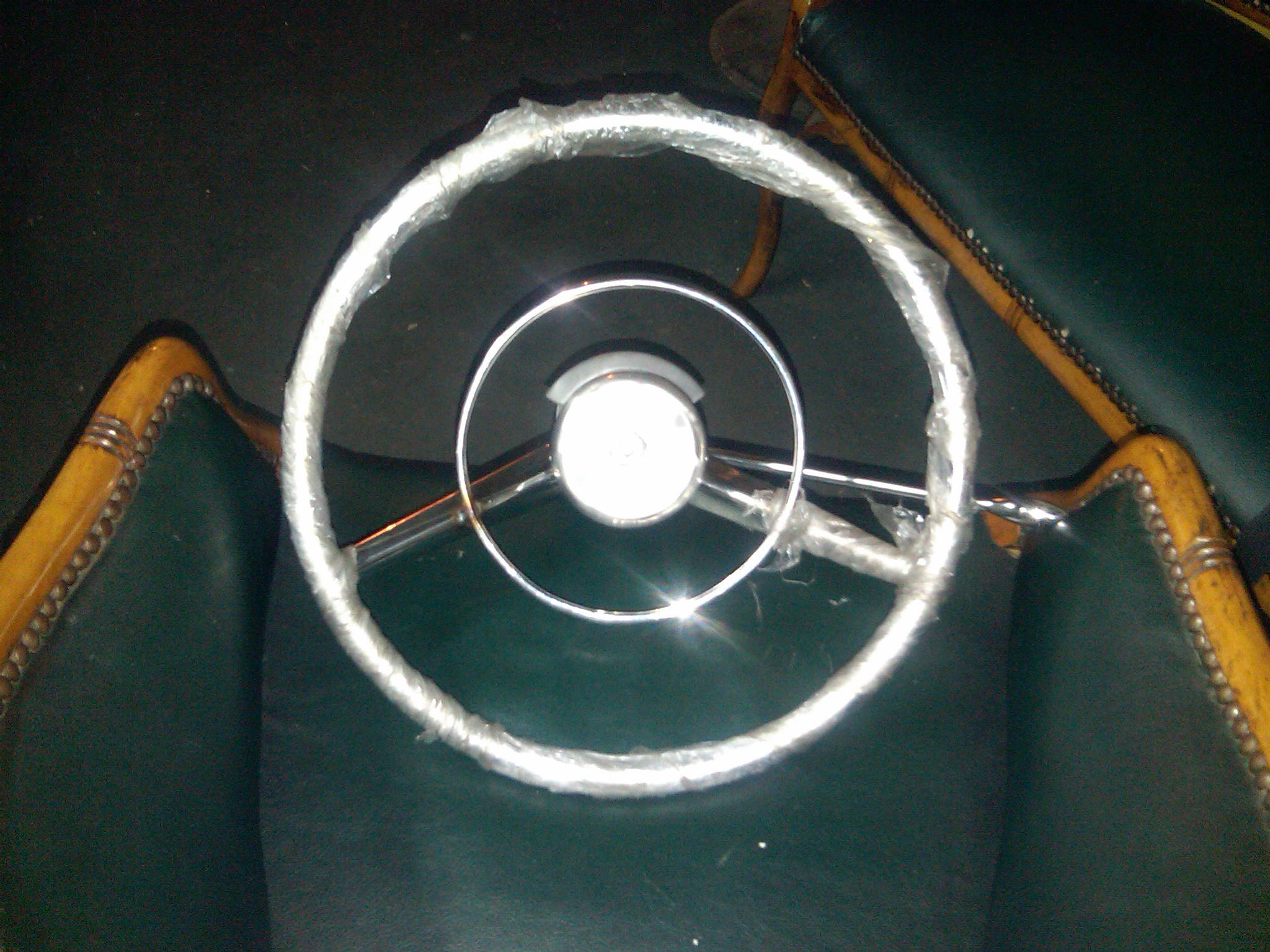

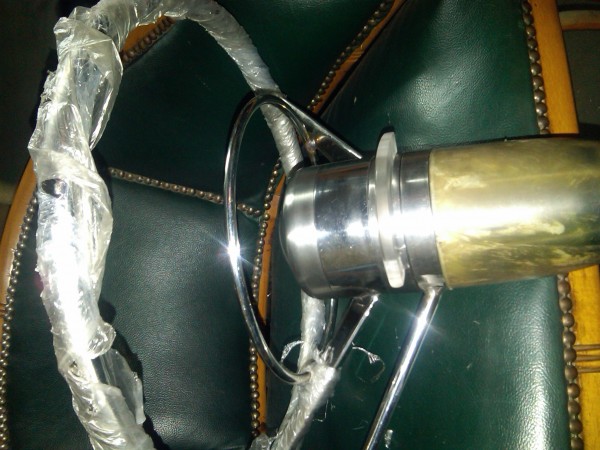

There is still some packing material on it for protection.
There is still some packing material on it for protection.
it will be removed, once we attach the leather.
it will be removed, once we attach the leather.
b
b
a
a
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

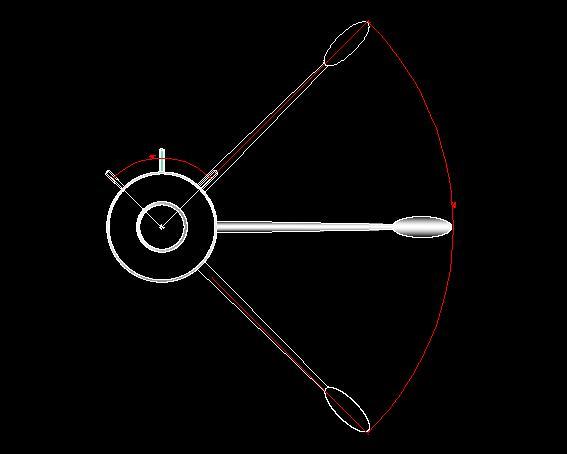

Lever moving 90 degrees
Lever moving 90 degrees
Lever Movement.JPG (16.52 KiB) Viewed 55945 times
90 degrees is steped-up to 160 degrees to move a potientiometer of a ready control head lever (Mathers)
The movement is being transfered via toothed belt drive box.
Trigger belt enables the transmission
Trigger belt enables the transmission
Revised mechanics.JPG (27.88 KiB) Viewed 55891 times
The box is out of aluminum and consist of 3 plates, bolts and nuts.

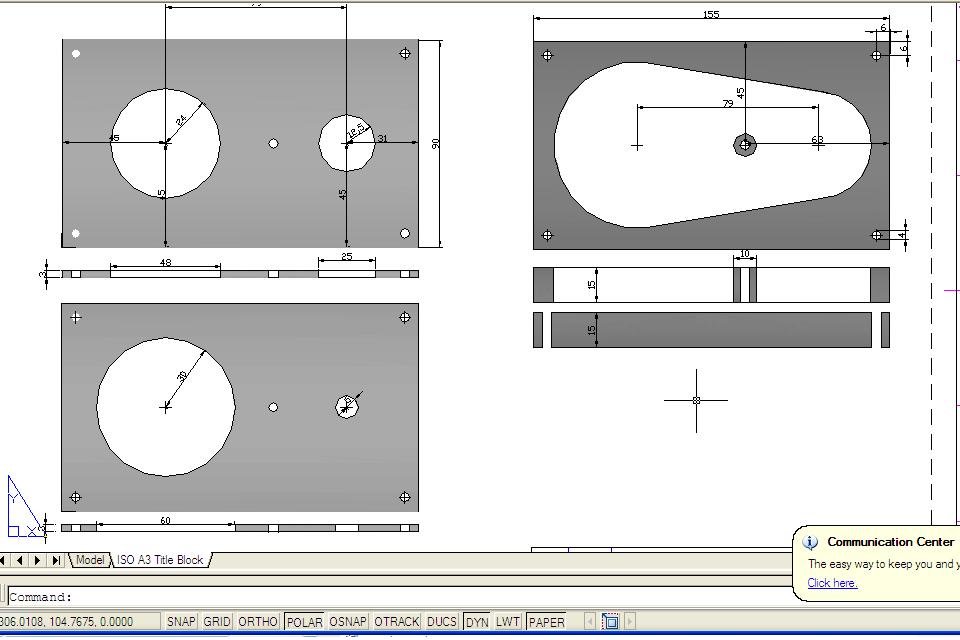

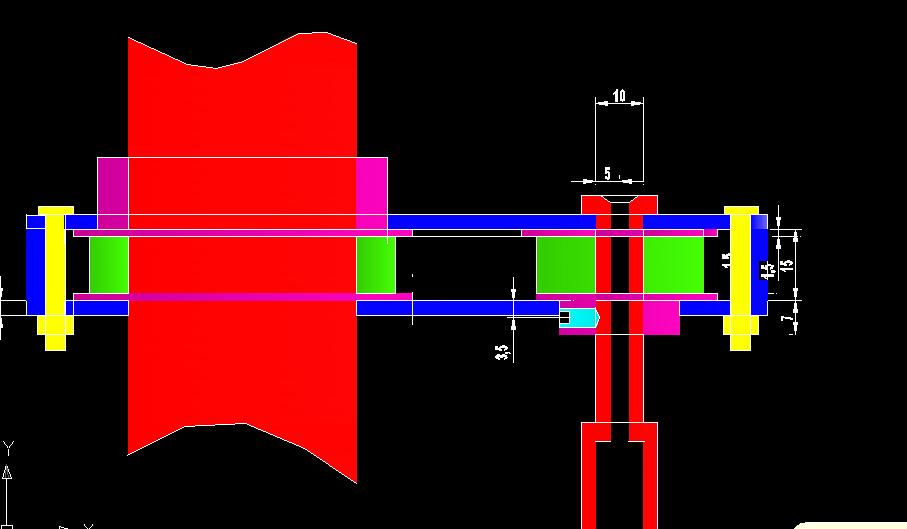

Here is the production drawing.
Here is the production drawing.
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

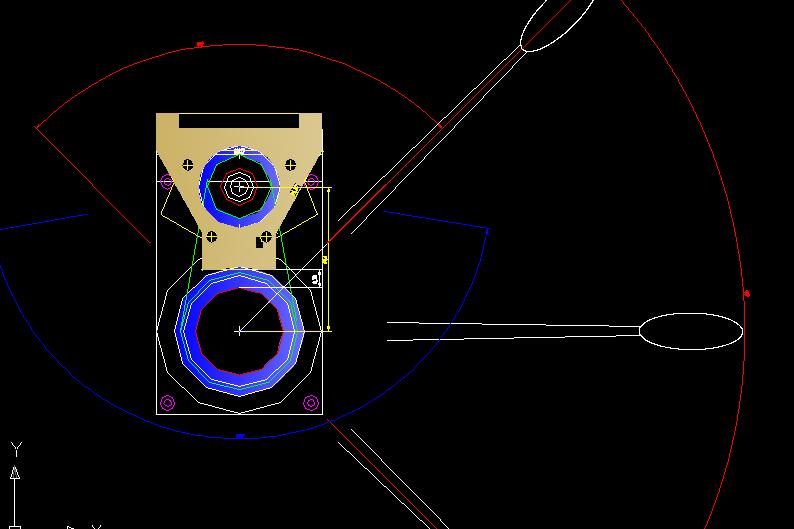

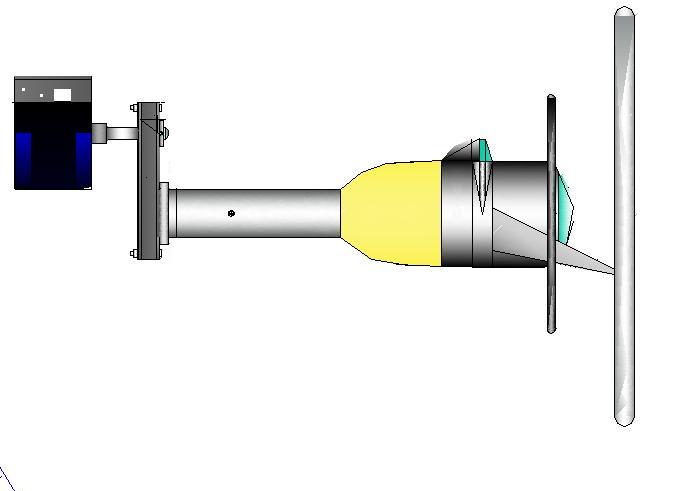

The mechanic transmission of the lever is being shown.
What is beige is the mechanism of the potentiometer.
What is beige is the mechanism of the potentiometer.

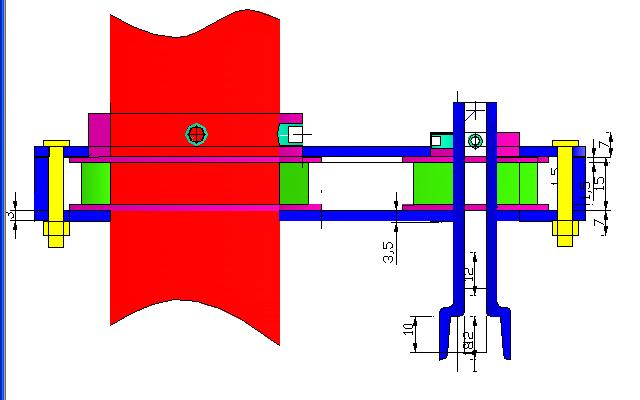

Sectional drawing of the step-up box.
Sectional drawing of the step-up box.
beige became our favourite...
beige became our favourite...
last version of of da wheel.JPG (18.85 KiB) Viewed 55891 times
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

Done ...

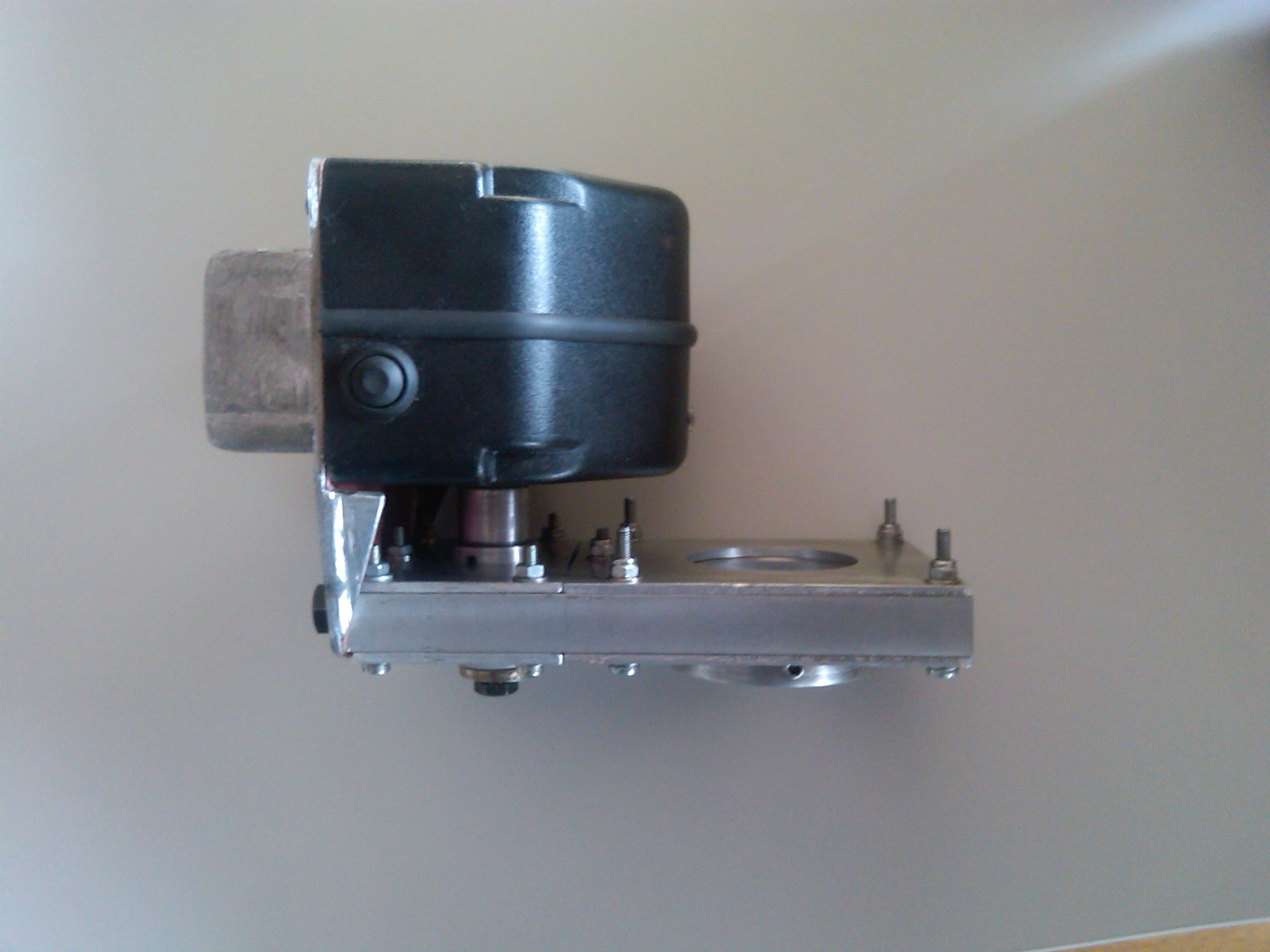

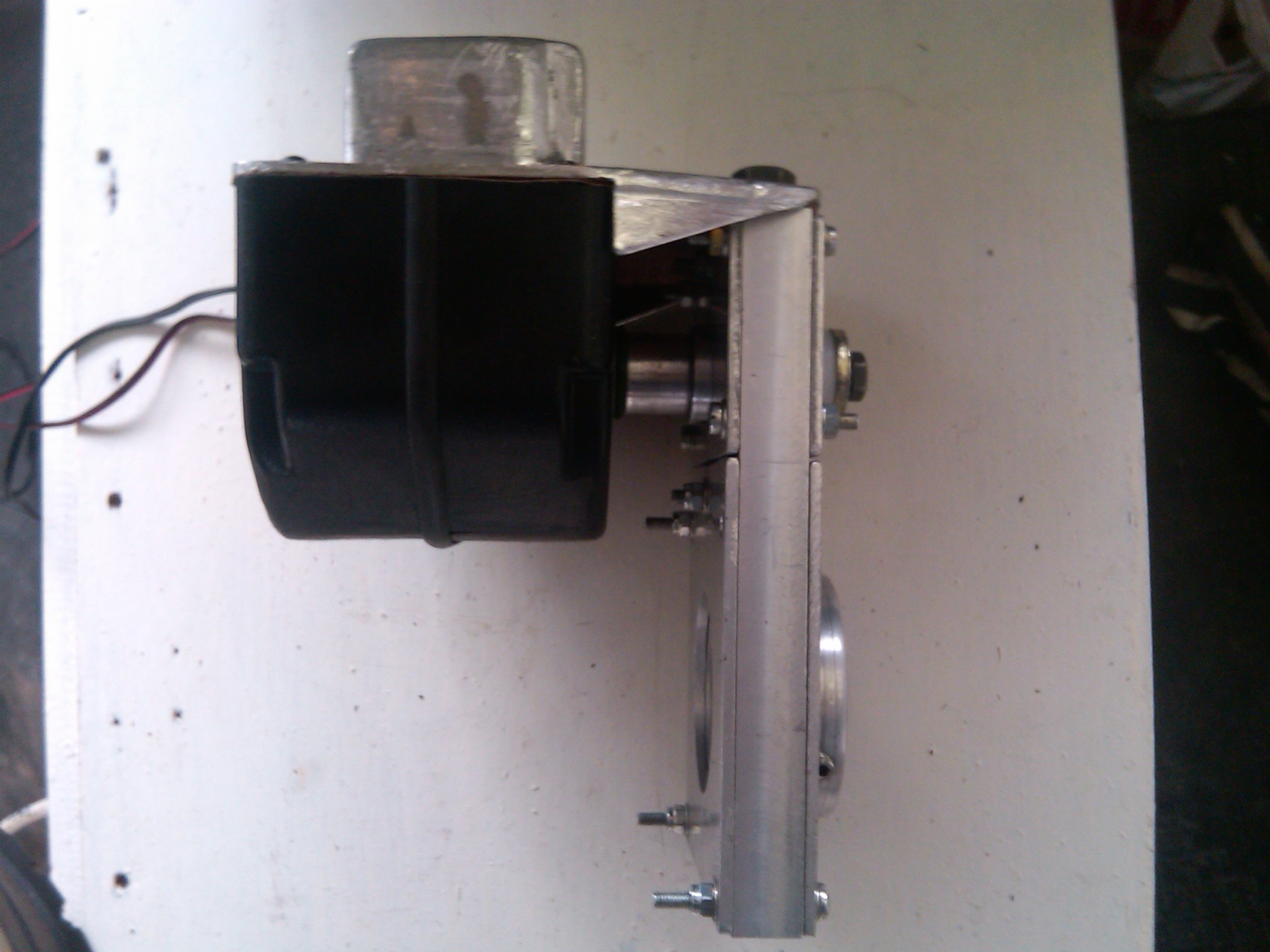

Control transmission box
Control transmission box
We were fearing that it will touch the shaft, but it was thouching the housing of the aluminium cast steering housing. So there were 5 mm to 8 mm too much we had to the jigsaw to cut it away. A cover was glued on the opening.
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

Done ...
I know, it's not a beauty!
I know, it's not a beauty!
Georg
Motorboat ''Flying Carpet''
Istanbul
User avatar
Georg Weinstabl
Posts: 247
Joined: Fri Sep 04, 2009 7:27 am

Re: Electronic or electro-mechanic control of engine and gearbox

Post by Georg Weinstabl »

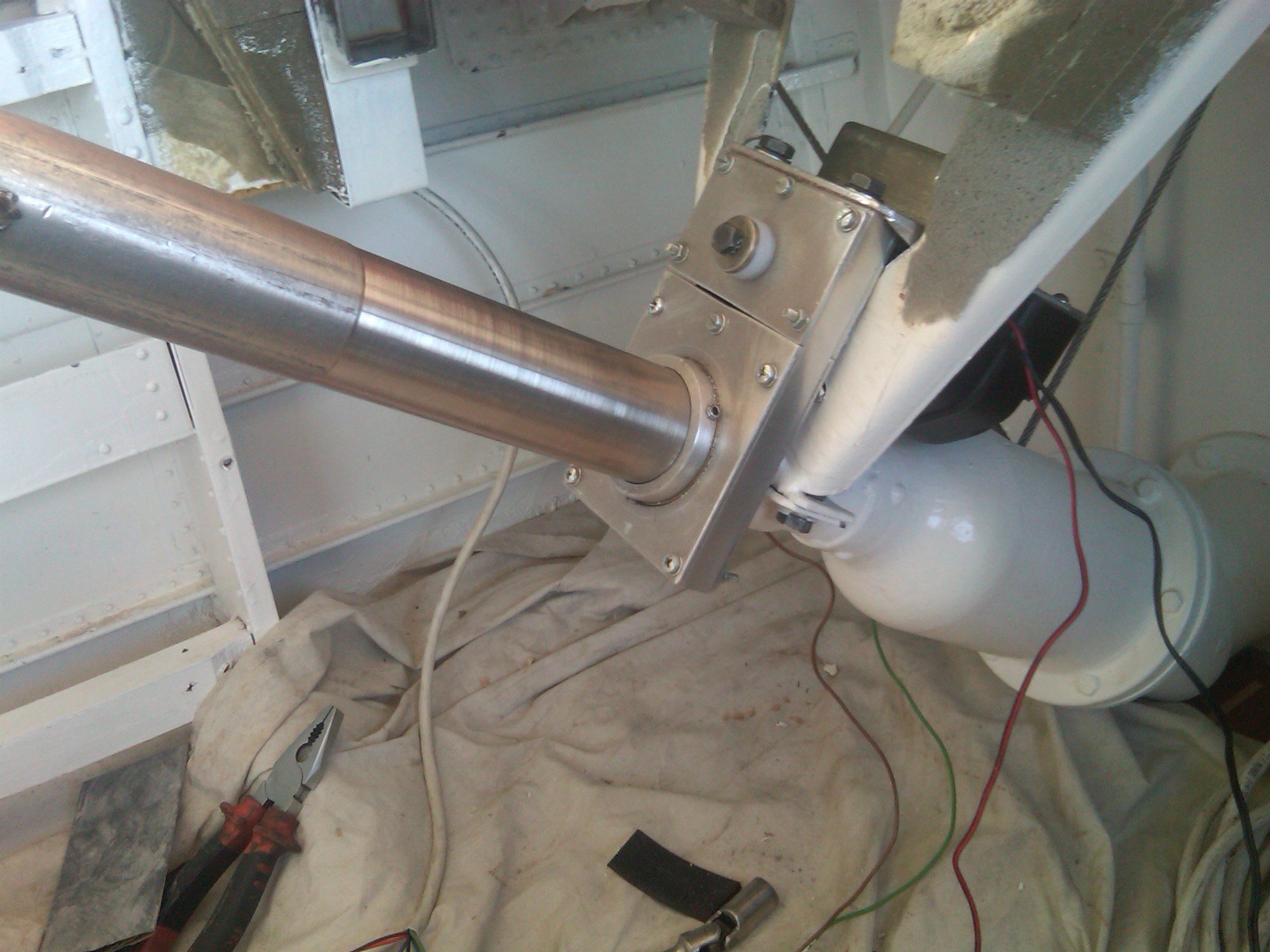

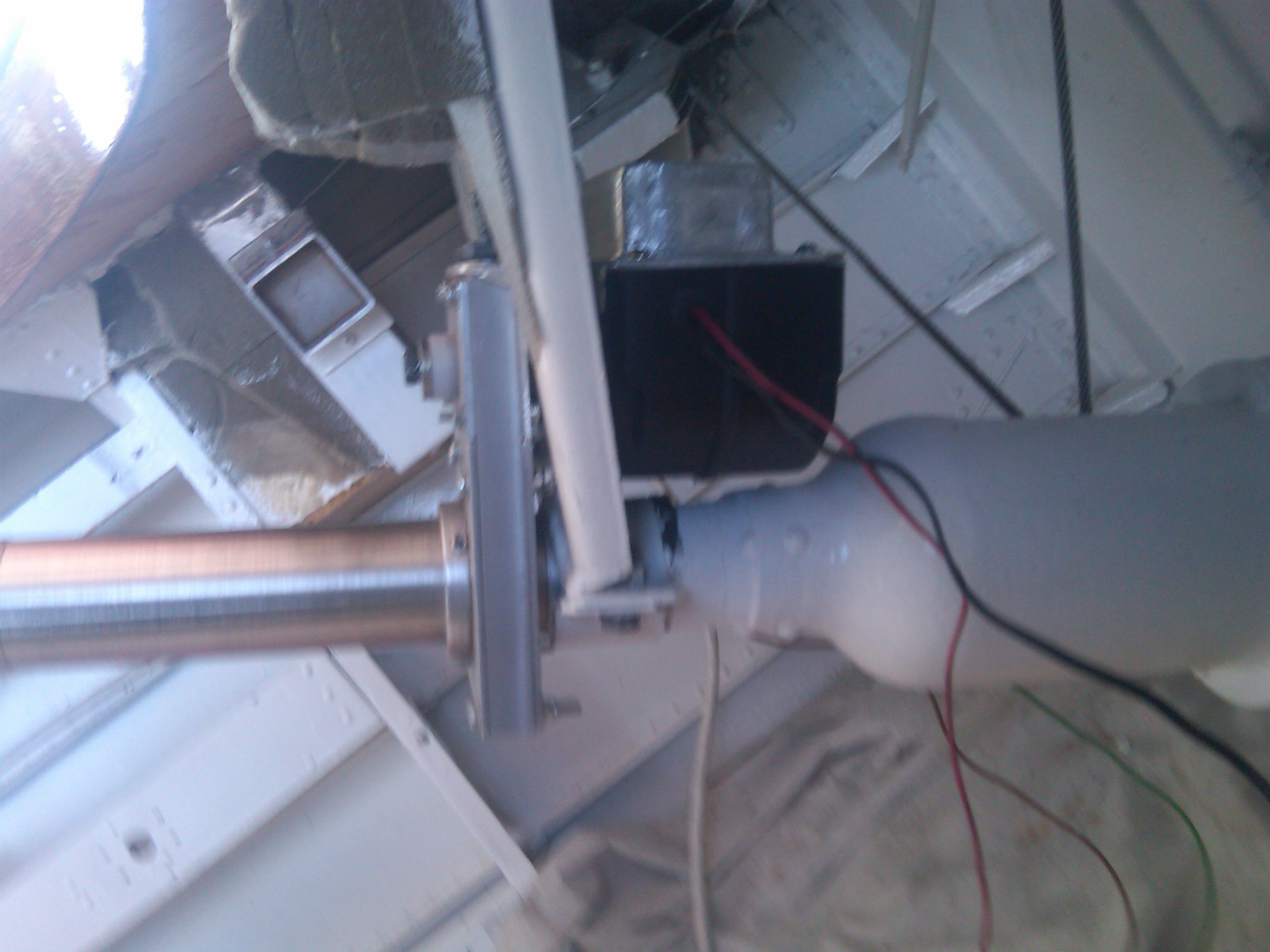

This is how it looks when the mechanism is installed.
Now waiting for the connection of the cables.
Now waiting for the connection of the cables.
You have to imagine the same thing with the steering wheel mounted.
Already installed
Already installed
